Specifications This Chapter gives data for all KLS projectors used, including SpectraBeam/T10, KLS T-13, KLS HT-10 and same family and class IV projectors. CFR21 1040.10/11Caution - use
of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous

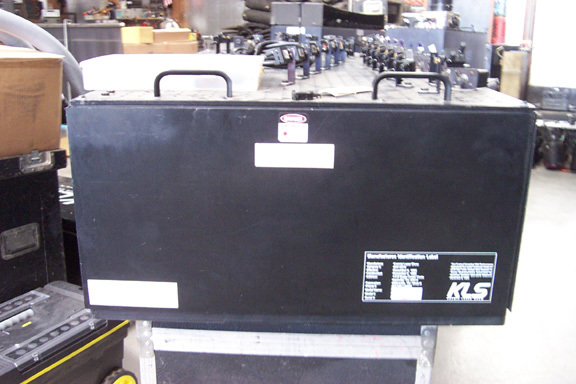

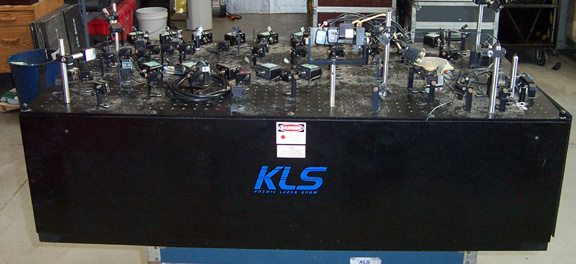

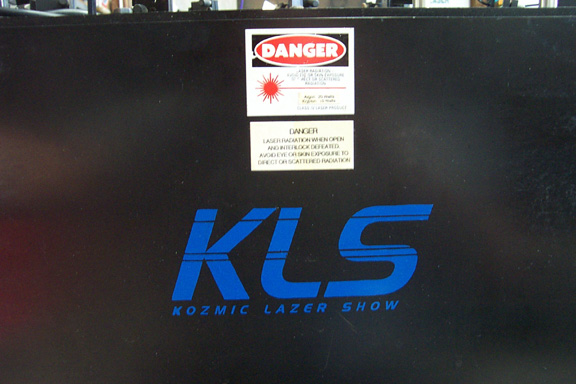

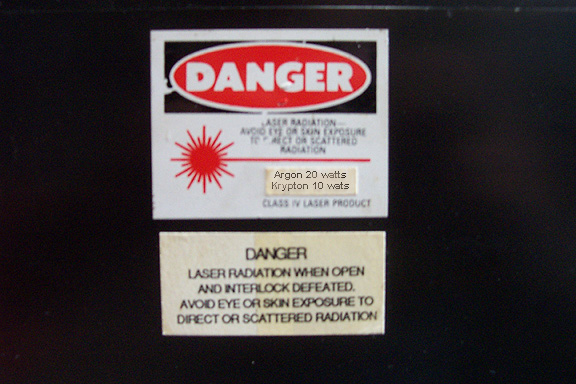

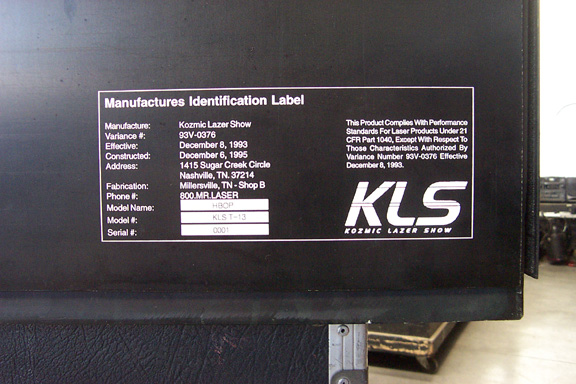

radiation exposure. Input Control Voltage: 0-10 VDC, 24 Channels Shutter Voltage: 0-10 VDC Channel Adjust: Driver card Gain and Offest pots. Size: 2'x4'x15" or 1'x4'x15" (HT-10) Positions: 10-20, Pending model or temporary configuration. Beam Launchers: 20-40, Pending model or temporary configuration. Scanner/Gavlos: Modular Design, temporary configuration. Compliance: 10 second Shutter Relay Delay Circuit, Manual Reset, Key Lock, Remote Shutter Interrupt, Door & Cover Interlocks. Logotypes/Placards: Manufactures ID Label, All Doors have (Exterior & Interior) "Interlock Deafted" Labels, Danger Logo with Class, Wavelength and Output Ratings (photos below).
|
|||||||||||||
|
|||||||||||||
